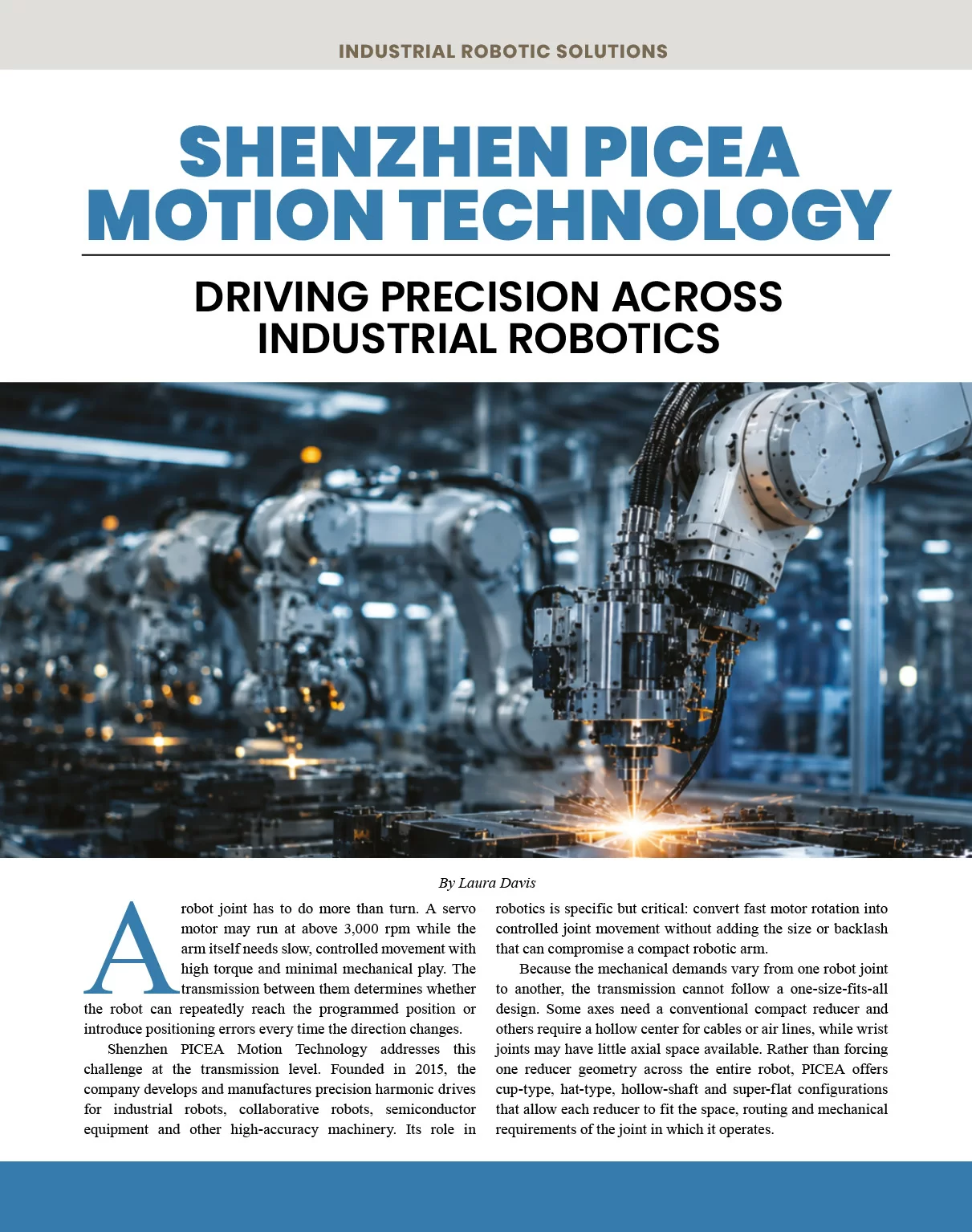

Shenzhen Picea Motion Technology
Driving Precision Across Industrial Robotics

A robot joint has to do more than turn. A servo motor may run at above 3,000 rpm while the arm itself needs slow, controlled movement with high torque and minimal mechanical play. The transmission between them determines whether the robot can repeatedly reach the programmed position or introduce positioning errors every time the direction changes.

Shenzhen Picea Motion Technology addresses this challenge at the transmission level. Founded in 2015, the company develops and manufactures precision harmonic drives for industrial robots, collaborative robots, semiconductor equipment and other high-accuracy machinery. Its role in robotics is specific but critical: convert fast motor rotation into controlled joint movement without adding the size or backlash that can compromise a compact robotic arm.

Because the mechanical demands vary from one robot joint to another, the transmission cannot follow a one-size-fits-all design. Some axes need a conventional compact reducer and others require a hollow center for cables or air lines, while wrist joints may have little axial space available. Rather than forcing one reducer geometry across the entire robot, PICEA offers cup-type, hat-type, hollow-shaft and super-flat configurations that allow each reducer to fit the space, routing and mechanical requirements of the joint in which it operates.

Turning Speed into Controlled Motion

A harmonic drive uses a wave generator, flexspline and circular spline to create reduction through controlled elastic deformation. The mechanism can deliver a high ratio in one stage while keeping input and output coaxial. An industrial robot can use a fast, compact motor while the joint receives the slower, higher-torque motion needed to position the arm accurately.

PICEA Motion works at the point where high-speed motor rotation becomes the controlled, repeatable movement of an industrial robot joint.

PICEA has single-stage reduction ratios from 30:1 to 160:1 for industrial robot applications. It also reports backlash below one arcminute for its harmonic reducers. That low level of lost motion becomes especially important when the arm changes direction. During welding, assembly or other programmed tasks, the end effector may need to return to the same position repeatedly, and excess backlash can introduce positioning errors with each reversal.

The value of this transmission design becomes clearer when the robot maintains precision without increasing the size or weight of the joint, helping designers limit inertia around moving axes. The right transmission depends on the demands of the specific robot joint. PICEA notes that RV reducers retain advantages in heavy-load positions where higher rigidity and torque capacity are decisive, while harmonic drives are particularly well suited to lighter, more dexterous sections of the arm.

One Robot, Different Joint Constraints

The mechanical demands of a robot also change from one joint to the next.

PICEA’s PMCG family provides the conventional cup-type architecture, with coaxial input and output and near-zero backlashes. PMCG-I-E is supplied as a component set for designs where the customer integrates the reducer into its own structure, while PMCG-II-E packages the mechanism as a unit with an integral cam.

Where the joint also has to accommodate internal cables or other lines, the transmission geometry changes. The PMHG range uses hollow-shaft configurations to create a passage through the reducer for motor cables, encoder wiring, pneumatic lines or other services. PICEA identifies PMHG variants for several industrial robot axes, allowing the transmission and internal routing to share the limited space within the same joint.

The space constraint becomes even more pronounced near the wrist. PMCD-II uses a super-flat cup-type configuration intended for installations where axial length must be minimized. PMHD-III combines a super-flat profile with a hollow-shaft arrangement, creating another option for joints that need both a short transmission package and a central passage for internal routing.

These differences show why a robot cannot always use the same reducer geometry across every axis. Diameter may be constrained at one axis while cable routing governs another. PICEA’s portfolio allows the reducer architecture to adapt to the mechanical requirements of each joint rather than forcing the surrounding robot structure to accommodate a fixed gearbox design.

Reducing Mass Where Motion Is Fastest

Weight becomes more consequential as it moves farther from the robot base. A kilogram added near the wrist also has to be accelerated by the joints behind it, increasing inertia and placing greater demands on the motors that drive the rest of the arm.

That makes weight reduction particularly important in the forearm, wrist and other moving sections near the end of the robot. PICEA positions harmonic drives around that constraint. Its industrial robot materials are smaller and lighter than comparable RV solutions for appropriate applications, making them particularly relevant to robot forearms, wrists and end sections. Compact single-stage reduction can also lessen the amount of mechanical hardware needed around the transmission.

For welding or laser-processing robots, the same packaging advantage leaves more room for cables and process lines. Collaborative robots benefit from joints that remain compact as the arm moves close to people or equipment. Assembly systems depend on repeatable positioning within a relatively lightweight structure. The applications differ, but the transmission requirement remains tied to the balance between accuracy and moving mass.

PICEA does not present harmonic reducers as the answer to every robotic axis. Its own comparison with RV technology acknowledges where heavier, stiffer transmission systems remain better suited. That distinction makes the robotic value clearer with harmonic drives working best where precision, flexible packaging and low inertia matter more than maximum structural rigidity.

Precision Is Built into the Teeth

Low backlash at the robot joint begins with the geometry of the reducer itself.

PICEA’s R&D team has worked on harmonic-drive technology since 2010. The company describes using theoretical calculations and finite-element analysis together with measured data and multi-objective regression optimization to develop non-standard double-arc tooth profiles. The goal is to improve several aspects of transmission performance at once, including load torque, transmission smoothness and repeat positioning accuracy.

The flexspline adds another manufacturing challenge. It has to deform repeatedly while preserving accurate engagement with the circular spline. PICEA uses selected materials and multi-process heat treatment to improve the mechanical properties of the component. The finished reducers then pass through multiple quality-control stages before shipment. That engineering work supports PICEA’s broad product range. It has independently developed 11 harmonic-drive series with more than 300 models, including upgraded high-torque versions intended to improve transmission accuracy and service life while reducing vibration and noise.

The number of models, however, tells only part of the story. A robot joint may be designed around a particular reduction ratio or shaft arrangement, but its performance still depends on how consistently the tooth profile, flexspline behavior and assembled reducer match the original specification.

Building the Drive Around the Robot

Robot manufacturers do not always start with a standard gearbox and design outward. Shaft arrangement, installation space and load requirements can force the transmission to fit an existing joint concept.

That is where the reducer supplier’s role extends beyond the product itself. PICEA supports that development through pre-sales technical consultation, customization and after-sales engineering assistance. Its service model covers solution selection and technical support through installation, troubleshooting, maintenance and later upgrades.

This positions PICEA as more than a catalogue supplier of reducers. Its value lies in matching the harmonic-drive design with the physical requirements of the specific robot axis in which the unit will operate.

PICEA does not need to manufacture the complete robot to influence how accurately it moves. The company works at the joint, where high-speed motor rotation is converted into usable torque and controlled, repeatable movement. By controlling the reducer architecture and the precision technologies behind it, PICEA helps industrial robots achieve the accuracy required for their programmed tasks.
